Follow The Shape.
Draw The Line.

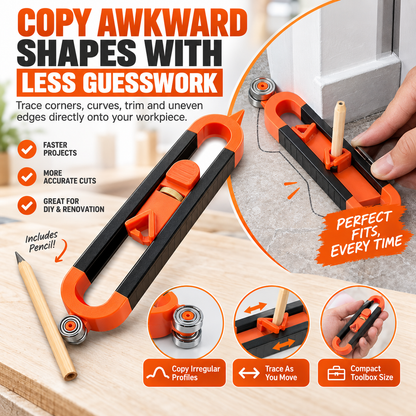

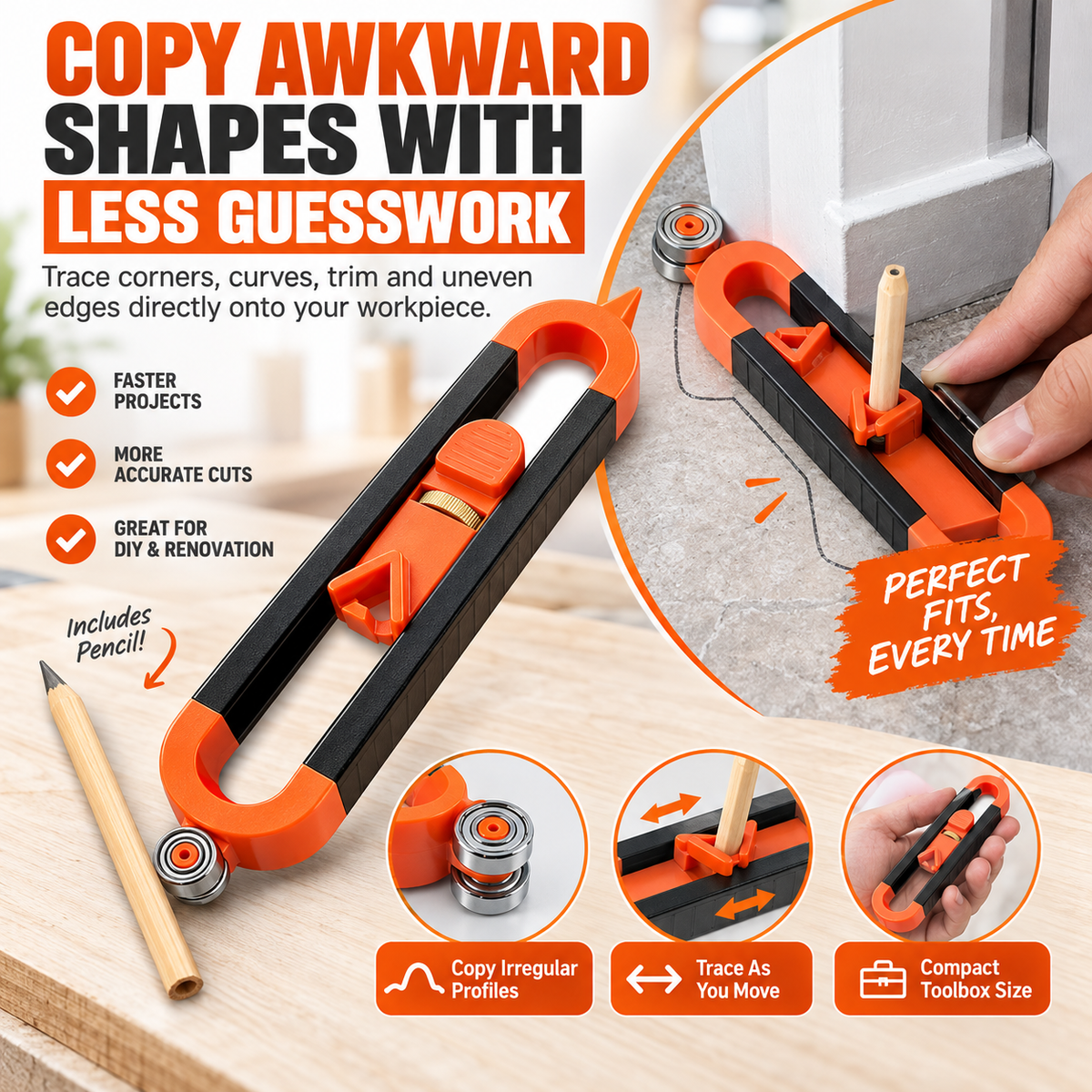

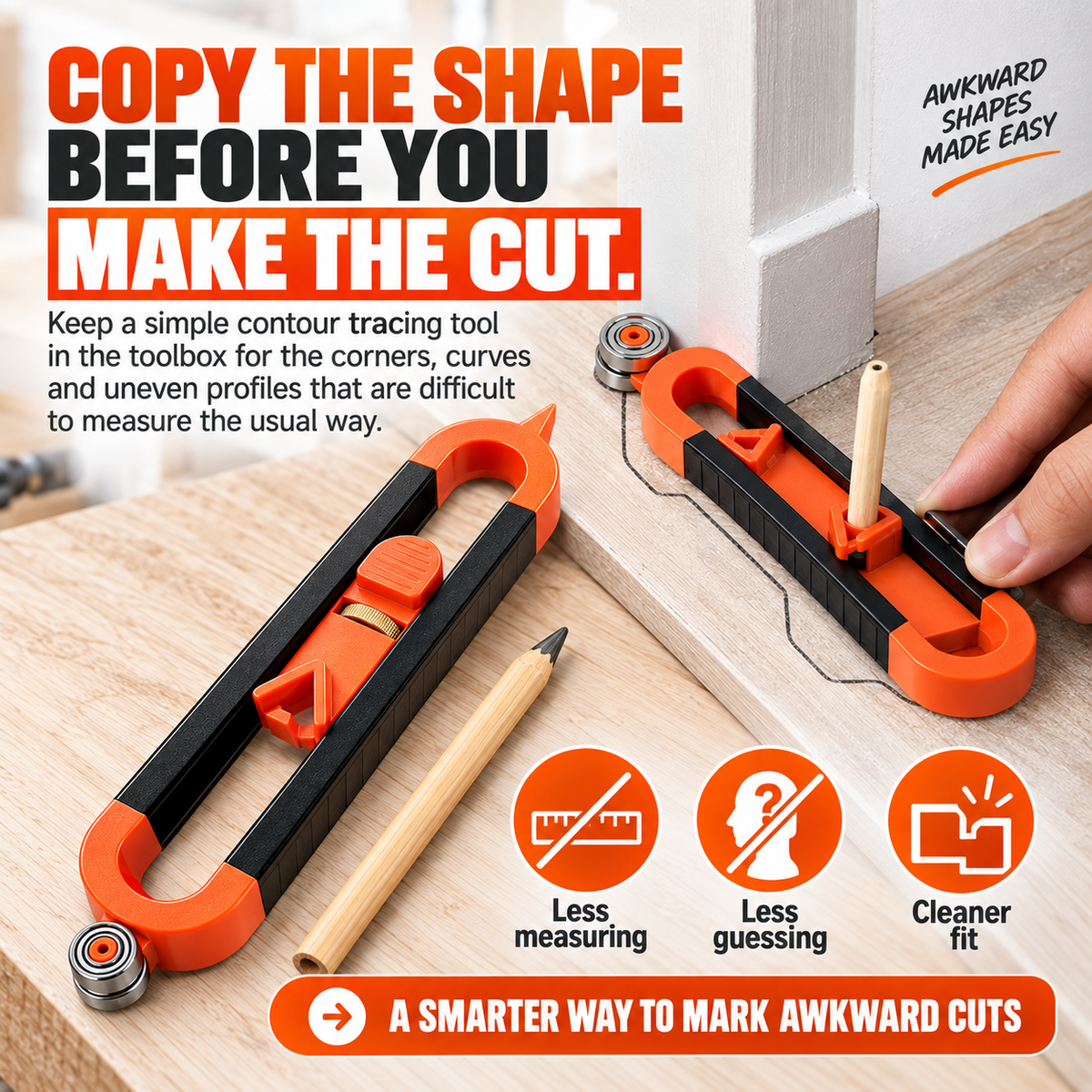

Transfer irregular edges directly onto your workpiece. This compact scribing tool guides a mounted pencil along the profile, giving you a reference line before you cut, trim or fit.
From Existing Edge
To Pencil Line.

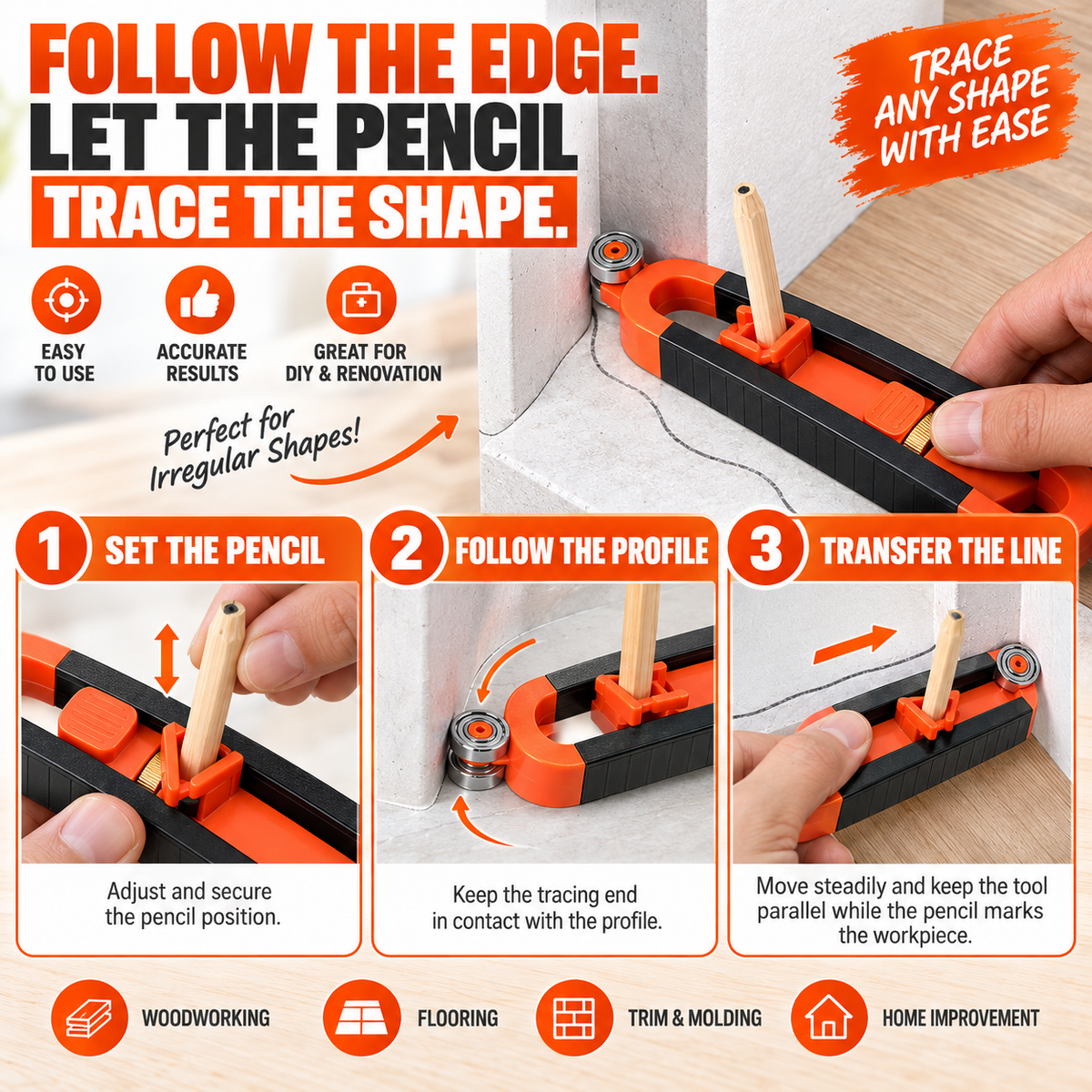

Secure the pencil, place the contact end against the profile and guide the tool along it. As you trace, the pencil transfers a corresponding line onto your board, panel or other material.
Keep the tool’s orientation and offset consistent throughout the movement for a more reliable reference.
A Smooth Roller.
A Focused Point.

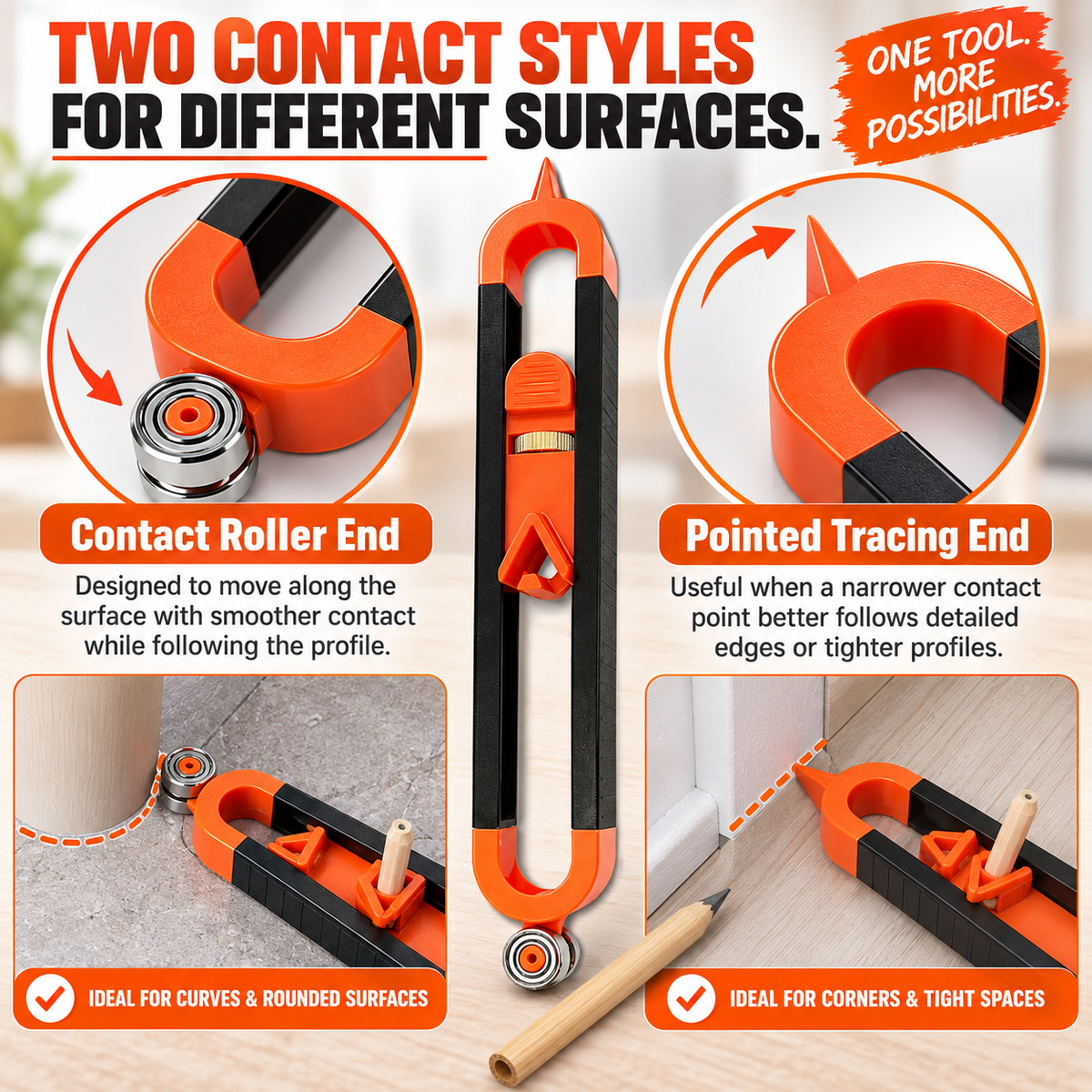

Choose the contact end that suits the shape you are following, from broader surfaces to tighter details.
Provides rolling contact as you follow a surface or broader profile.
Useful for accessing tighter corners and more detailed contours.
Adjust The Pencil.
Lock It In Place.

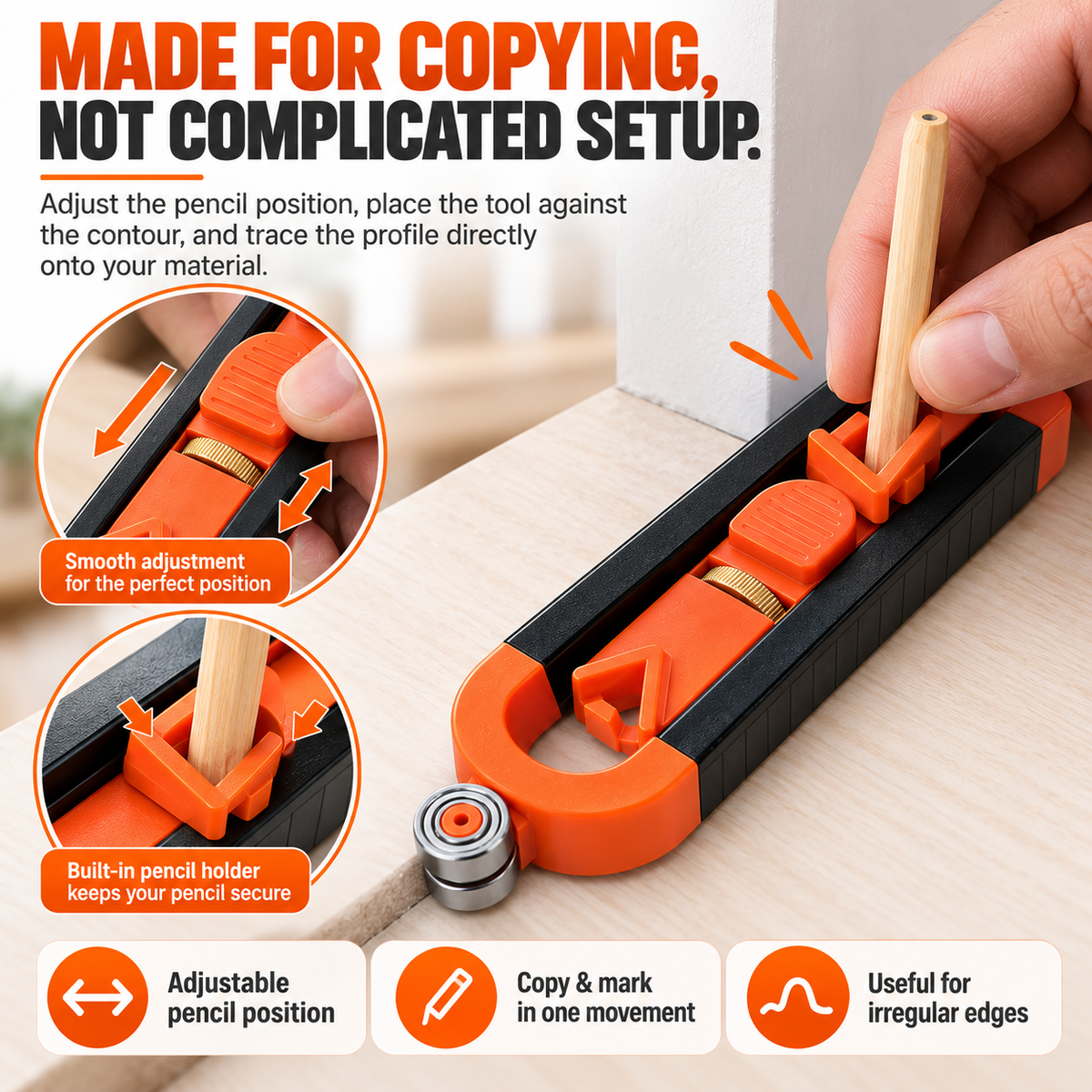

The adjustable holder lets you position the pencil for your tracing task. Tighten the locking knob before marking to help keep the pencil secure.
Open the holder by loosening the locking knob.
Insert the pencil and adjust the marking point for your workpiece.
Tighten the knob and check that the pencil stays in place before tracing.
Awkward Shapes.
A Clearer Starting Point.

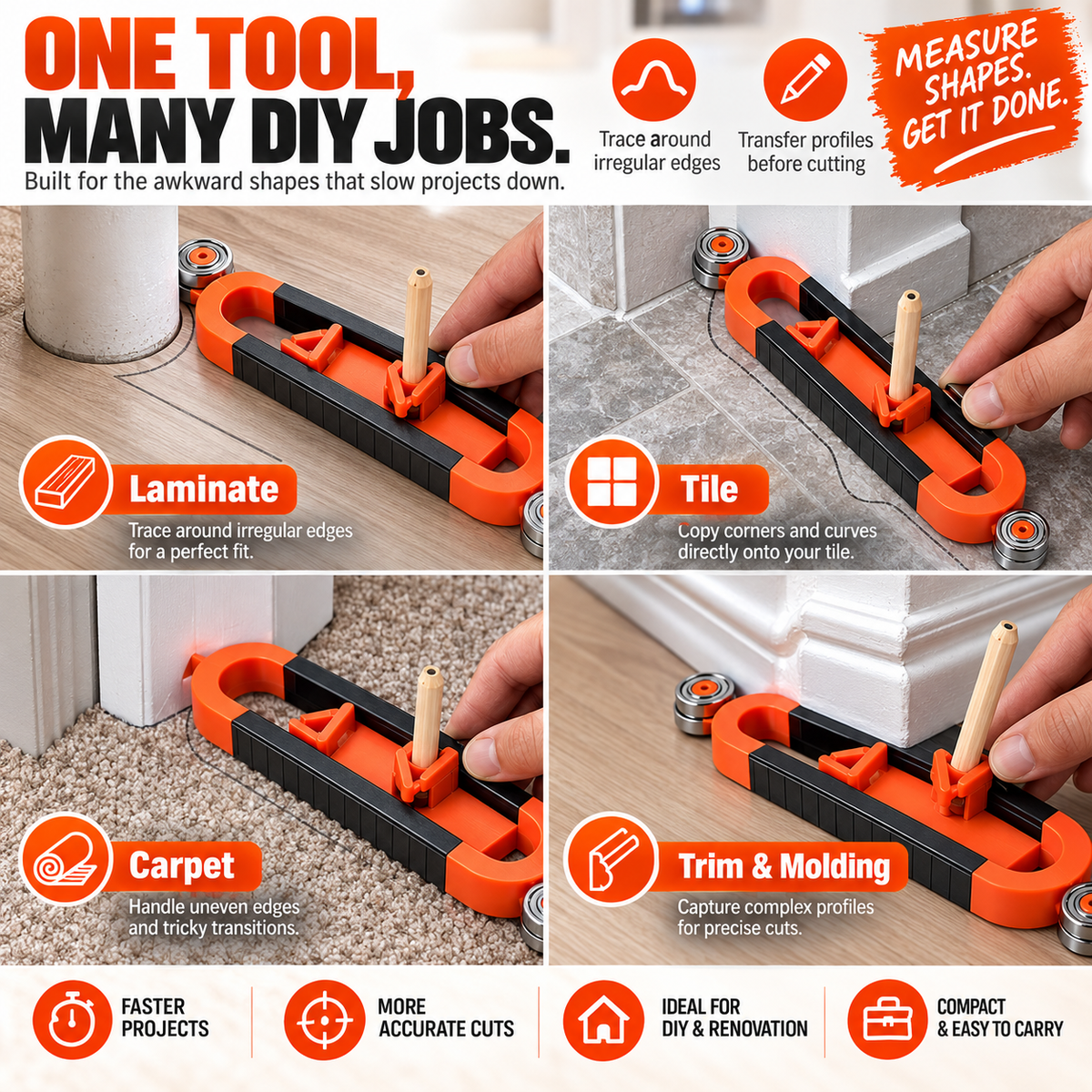

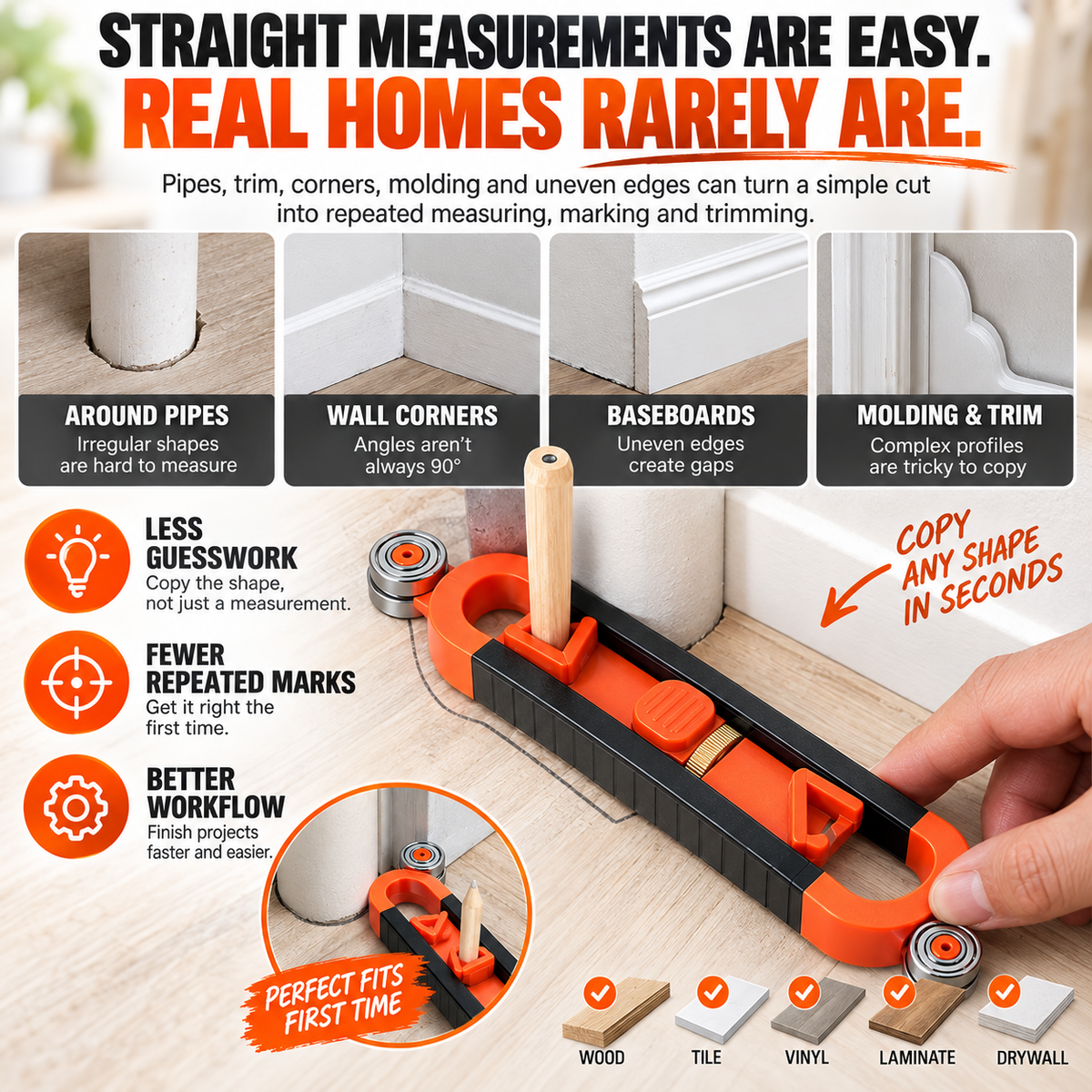

When material needs to fit around a curve, pipe, corner or existing structure, a traced profile helps you plan the cut. Use it for layout work across flooring, woodworking and renovation projects.
Trace Before You Cut.
Check Before You Fit.
Use the pencil line as a reference for your next cut or adjustment. Check measurements, allow for the intended fit and test the piece before committing to the final cut.
A Practical Tool.
A Place In Your Kit.

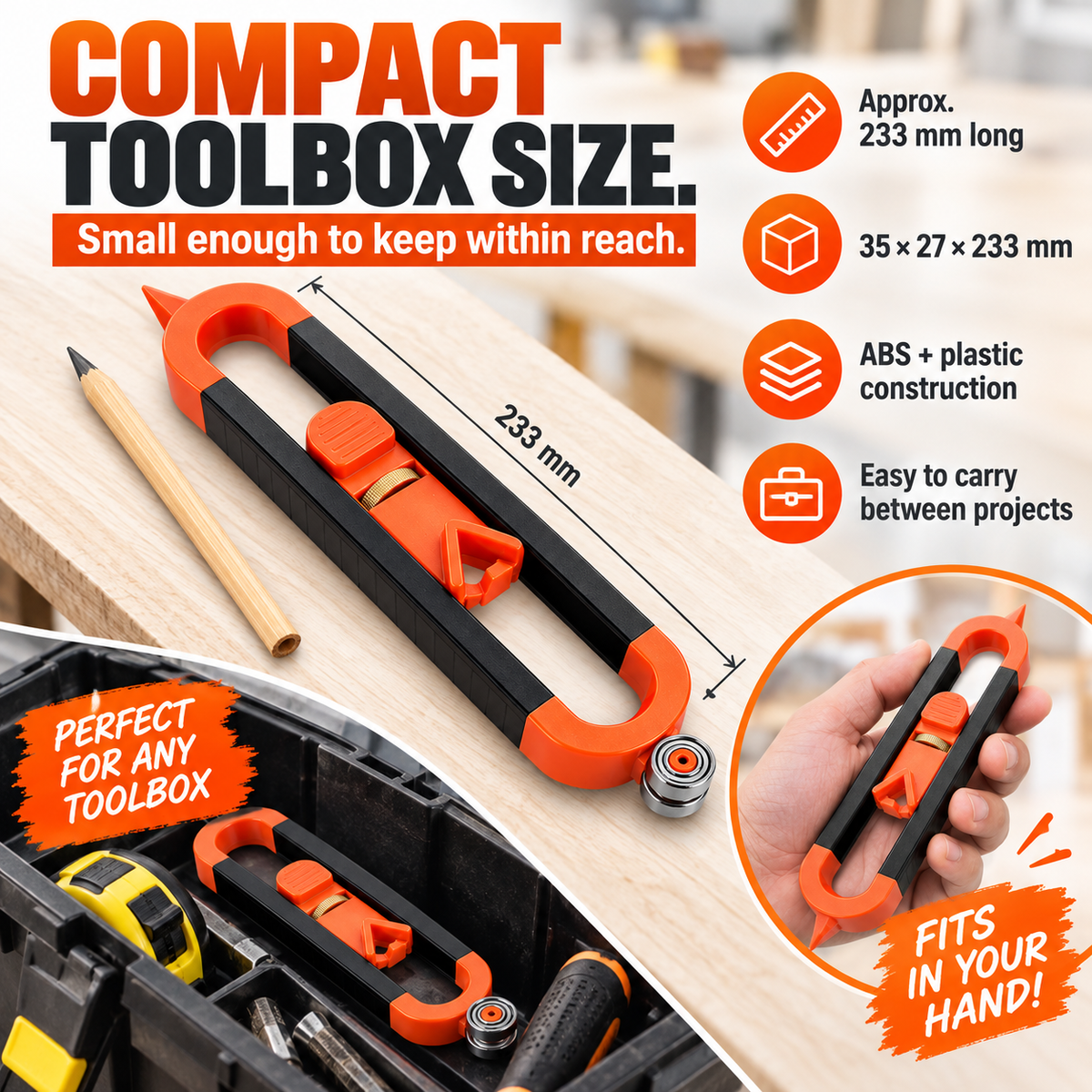

At approximately 9.17 inches long, the slim design is convenient to store with your hand tools and carry between fitting and renovation jobs.
| Product Type | Contour Scribe / Profile Tracing Tool |
|---|---|
| Approximate Size | 233 × 35 × 27 mm |
| Imperial Size | 9.17 × 1.4 × 1.06 inches |
| Working Ends | Roller End + Pointed End |
| Pencil Holder | Adjustable Holder With Locking Knob |
| Main Applications | Woodworking, Tile Layout, Flooring, Carpet & Molding |
Tracing tip: Keep the tool’s orientation consistent as you follow the edge. Check your measurements and test-fit the marked piece before making a final cut.
Before Your
Next Project.
How does it transfer a contour?
Place the roller or pointed end against the profile and guide the tool along it. The mounted pencil marks a corresponding line on your material as you move.
What projects is it useful for?
It is intended for profile marking during woodworking, tile fitting, laminate flooring, carpet cutting, molding and similar layout tasks.
Why does it have two working ends?
The roller provides rolling contact along a surface, while the pointed end can access tighter corners and more detailed shapes.
Can I adjust the pencil position?
Yes. Loosen the locking knob, position the pencil in the holder and tighten it before tracing.
What size is the tool?
The approximate dimensions are 233 × 35 × 27 mm, or 9.17 × 1.4 × 1.06 inches.
Follow The Edge.
Find Your Line.
Bring a practical tracing tool to the jobs where a straight ruler isn’t enough. Transfer the profile, check your work and prepare your material for the next step.
